LOONG F2-10 IP54 Drone with 360° Obstacle Avoidance

Brand Name : MMC

Model Number : Fiber Optic Combat UAV LOONG F2-10

Place Of Origin : SHENZHEN

Certification : ROHS

MOQ : 2

Price : Negotiable

Delivery Time : 30

Payment Terms : T/T

Supply Ability : 20000pcs/Mouth

Unladen Weight : 22.5kg

Main material : Carbon Fiber+Magnesium Aluminum Alloy+Plastid

Encryption Method : AES256

Wheelbases : 1750mm

Working Temperature : -20°C-60℃

Police PrivateNetwork (optional) : The UAV Is Equipped With A Function Module For Accessing The Private Network (police Unmanned Aerial Vehicle Frequency Band). It Supports Real-time Control Of The UAV And Its Mounting And Real-time Video Transmission Back To The Backstage Command Center Un

ADS-B Module(optional) : With ADS-B, It Can Acquire Civil Aviation Information In Real Time And Send It To The Flight Controlthrough UAVCAN.

Automatic obstacleavoidance : 360° Omnidirectionalobstacle Avoidance (horizontal)

Contact Now

Drone LOONG F2-10

Material: X Carbon Fiber, Aluminum Alloy, Engineering Plastics

Wheelbase: 706 mm

Expand max.size: 480*609*208mm (Without paddle)

Expand max.size:966*836*208mm (With paddles)

Fuselage weigh: 2.8kg(Excluding battery and mount)

Unladen weight: 3.8kg

Standard weight: 2.5kg

Max.load:5kg

Endurance:50min@no load, 35min@1kg

20min@2.5kg,8min@5kg

Working temperature: -20°C~60°C

Working humidity: 10%~90% non-condensing

Protection class: lP54

Electromagnetic interference: 100A/m

(Industrial Frequency Magnetic Field)

Elevation gain:5000m

Max. flight speed: 25m/s

Battery:14000mAh*1

Remote control

Screen: 5.5 inches

Storage: ROM 16GB + expandable (up to 128G)

Video output interface: HDMI

Built-in battery: Lithium-ion(4800mAh-7.2V)

Charging mode: support 12V/9V/5V

Working ambient temperature: -10~60°C

Charging time: 2.5h (using a 9V USB charger)

Charging ambient temperature: 0-40°C

Rating: 20W

Endurance: 4h

FPV glasses

Screen resolution: 720P/1080P

Support customization

Screen material: LCD

Power input: 7-26V(2-6s)

Video input interface: micro-HDMI

Chargers

Specification: dual 6s charger, input AC 100V-240V,AC 200W

Use of working temperature: 0~40°C

Dimension: 135*105*68mm

Weight: 580g

Flight battery

Battery string number: 6s

Full charge voltage: 25.8V

Nominal voltage: 20.88V

Minimum voltage: 15.6V

Nominal capacity: 13.8Ah

Typical capacity: 14.3Ah

Standard charge: 7A

Standard discharge: 42A

Instantaneous discharge: 98A

Weight: 942g±10g

Product Tags:

FPV drone kit with ADS-B

carbon fiber alloy FPV drone

22.5kg heavy-duty FPV drone

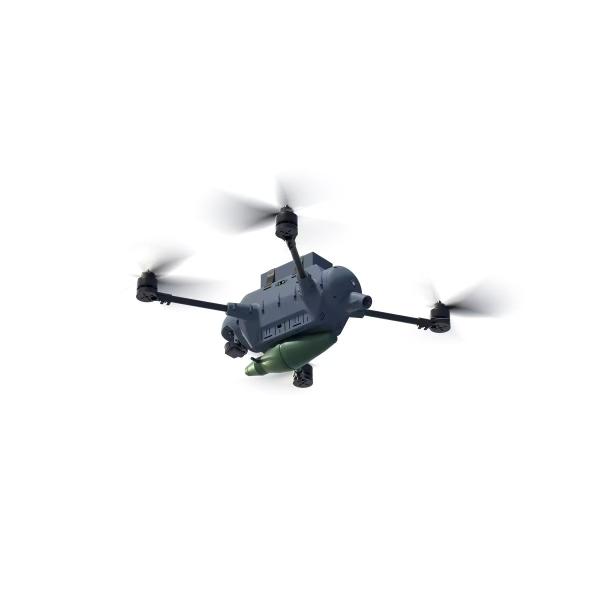

LOONG F2-10 IP54 Drone with 360° Obstacle Avoidance Images
